Lv–BAT–W5.12Ac

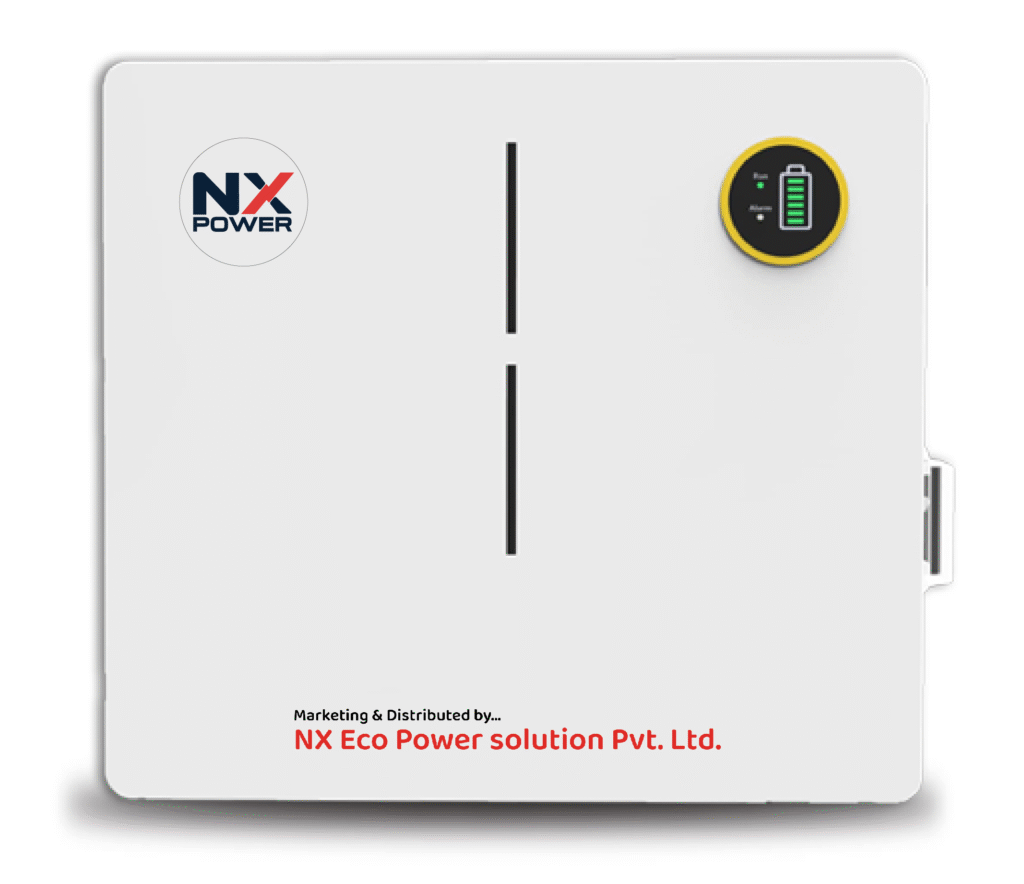

51.2V Wall-Mounted Li – ion Battery

LV-BAT-W5.12AC — Specification Table

LV-BAT-W5.12AC — Full Specification Table

Model	LV-BAT-W5.12AC
Nominal voltage	51.2 V
Rated capacity	100 Ah
Energy	5120 Wh
Battery impedance	≤ 50 mΩ
Charging cut-off voltage	56.16 V
Discharge cut-off voltage	45.6 V
Recommend charge current	0.2C (≈ 20 A)
Max. charge current	20A (0–15°C), 50A (15–45°C)
Max continuous discharge current	100 A
Operating temperature range	-20°C to 60°C
Storage environment (50% SOC)	20°C–45°C in three months; 25 ± 3°C over three months; Humidity 65 ± 20% RH
Environment	Indoor
Installation	Wall mounted
Cell technology	LiFePO₄
Life cycle	6000 cycles @ 80% DOD
Cooling	Natural convection
Protection rating	IP65
Certificates	CE-EMC, CB, GPSD, UKCA, CEI 0-21, UN38.3, MSDS, ROHS
DIMENSION AND WEIGHT
Dimension (L × W × H)	520 × 470 × 141.5 mm
Battery net weight / gross weight	48.45 KG / 54.15 KG
COMMUNICATION INSTRUCTION
RS232	Only for debugging, BMs can communicate with the host computer Through the RS232 interface, so that various information of thebattery can be monitored through the host computer, includingbattery voltage, current, temperature, status and battery productioninformation,etc. The default baud rate is 9600bps.
CAN	For monitoring battery status, with isolated CAN communication, the default communication rate is 500K.
RS485	RS485 is used in parallel, with dual RS485 interfaces, can view the PACK information, the default baud rate is 9600bps.
